Rumble Strips Asset Class

Rumble Strip As-built Survey Data Template

Rumble Strip Template standardizes the deliverable format for below Index.

Rumble Strip Feature Collect Index

Rumble strips are linear features with coordinates recorded as Linestring text.

File Feature Class Feature Coordinates Collect
As Linestring text format:
Lat1, Long1; Lat2, Long2; Lat3, Long3		 Attribute Collect Information
Rumble Strip As-built Survey Data Template Rumble Strip

Milled Rumble Strip

 At start and end locations of rumble strips; for curves at appropriate interval to show curvature may be computer generated

  1. Breaks for city limits are considered starting and ending points.
  2. Breaks for intersections and other entrances are not considered starting and ending points.
 1. Continuous or intermittent
2. Rectangular or Sinusoidal
3. Centerline or Edge line
4. Rumble strip width
5. Offset from centerline (measured to the middle of rumble strip)
Milled Rumble Strip – Intermittent
Milled Sinusoidal Rumble Strip
Milled Sinusoidal Rumble Strip-CL
Milled Sinusoidal Rumble Strip (Concrete)
Milled Sinusoidal Rumble Strip Concrete-CL
Milled Sinusoidal Rumble Strip – Intermittent
Milled Sinusoidal Rumble Strip (Concrete) – Intermittent

Rumble Strip Deliverable Examples

Example 1

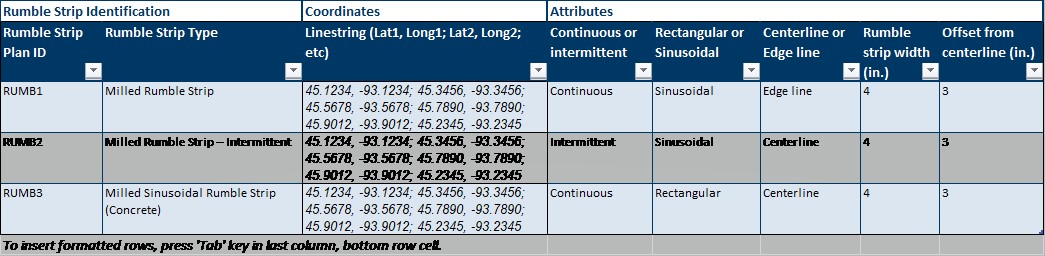

Example of a filled in Rumble Strips as-built survey data template

References

Legacy TABLE Z format will be accepted until phased out of contracts.
