Pavement Message Asset Class
Pavement Message As-built Survey Data Template
Pavement Message Template (Excel) standardizes the deliverable format for below Index.
Pavement Message Feature Collect Index
| File | Feature Class | Feature | Coordinates Collect Point | Attribute Collect Information |
|---|---|---|---|---|
| Pavement Message As-built Survey Data Template | Arrow | Arrow Straight | At center of Arrow | 1. Pavement Message Material 2. Quantity (number) |
| Left Arrow Right | ||||
| Left Straight Arrow | ||||
| Left Straight Right Arrow | ||||
| Left Turn Arrow | ||||
| Right Turn Arrow | ||||
| Straight Right Arrow | ||||
| Transition from Left Arrow | ||||
| Transition from Right Arrow | ||||
| Wrong Way Arrow | ||||
| Rectangular | Cross Walk Rails | At right end of rectangle | 1. Pavement Message Material 2. Number of Cross Walk Blocks 3. Stop Bar Length (Ft.) |
|
| Cross Walk Block | ||||
| Stop Line | ||||
| Text | Miscellaneous Marking | At center of Text | 1. Pavement Message Material 2. Quantity (number) |
|
| Yellow Curb | ||||
| Individual 8' Character | ||||
| MERGE | ||||
| ONLY | ||||
| PED XING | ||||
| SCHOOL XING | ||||
| SIGNAL AHEAD | ||||
| STOP AHEAD | ||||
| High Occupancy Vehicle | ||||
| Triangle | 24" White Crosshatch | At center of Crosshatch | 1. Pavement Message Material 2. Pavement Message Area (Sq. Ft.) 3. Number of Triangles |
|
| 24" Yellow Crosshatch | ||||
| Railroad | Railroad | At center of the "X" | 1. Pavement Message Material 2. 24" Solid White Line Length (Ft.) |
|
| 24" Solid White Line | At right end of the rectangle |
Pavement Message Deliverable Examples

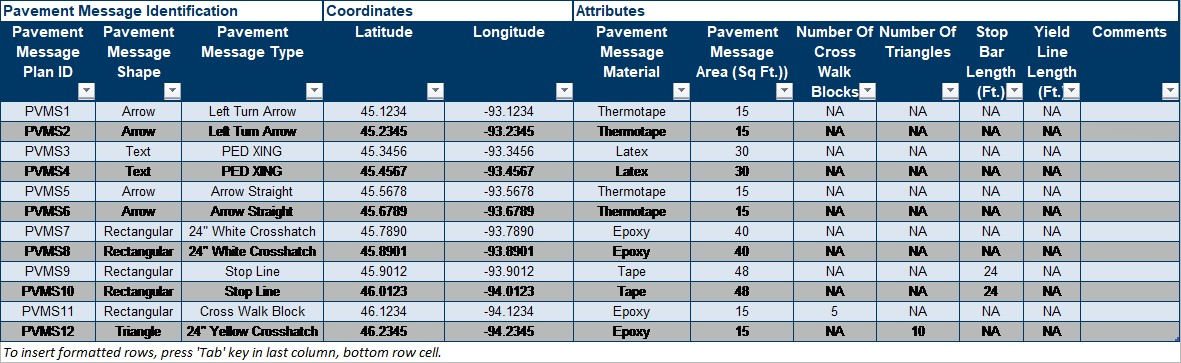

Example 1
